Shooting the reference

Before the set is struck, one tidy bracket of exposures earns its keep on every shot that follows.

Entry: 14
Section: 03 Reference Objects
By: Tom Beddoe
Read: 2 min

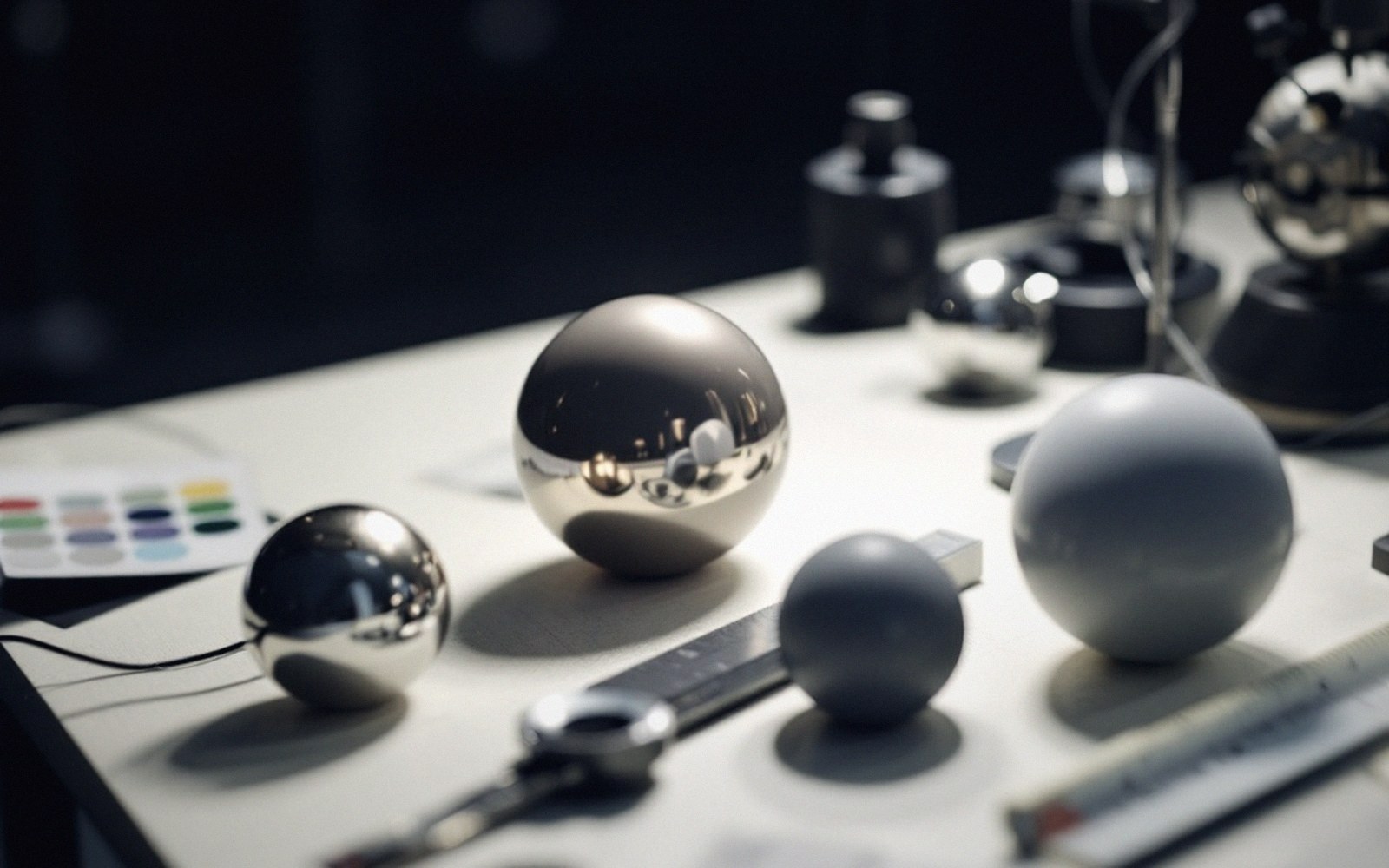

Reflective metal and matte gray spheres arranged on a table with measuring tools — Plate 01 · Reference ObjectsSame position, same exposure, before the set changes.

By Tom Beddoe · Reference Objects · 2 min read

The window closes once

A reference photograph is only useful if it shares a coordinate system with the final image. That means the camera does not move, the exposure does not drift, and the reference objects — a chrome and grey sphere, a colour chart, a grey card — sit where the key light actually falls on the subject, not where it is convenient to place them. Convenient is a different position, and a different position is a different light.

The sequence matters. Shoot reference first, before the crew adjusts a flag or a gaffer tweaks a dimmer. Every change after the first frame is a change that your reference no longer describes. If the set is being lit in stages — practical sources first, fill added later — shoot a bracket at each stage. Storage is cheap; reshooting a struck set is not.

Exposure must be locked. Auto-exposure across a bracket will silently shift the midtones between frames, which destroys the radiometric relationship between the bright and dark exposures that an HDRI depends on. Fix ISO, shutter and aperture, confirm them in the EXIF of the first frame, and do not touch them. The reference capture and the plate or beauty shot should share the same locked exposure so that a neutral grey card in the reference reads as the same linear value it would read in the scene.

A contact sheet of one set-up lit several ways, laid on the floor — The spheres and charts that tie a render to a set.

White balance is recorded in the raw file but applied later; what matters here is consistency, not correctness. Shoot everything in the same raw colour space and resolve the choice of neutral in post, where it can be made deliberately.

The objects leave the set; the files stay. At that point the reference is the only physical record of how the light fell on that stage on that day. A chrome ball that is slightly soft, or a chart that is slightly clipped, or a sphere that was placed a metre off-axis — each one quietly degrades every downstream decision made from it. The five minutes it takes to check the histogram before the set changes are five minutes that will not be spent later arguing about whether an asset matches.

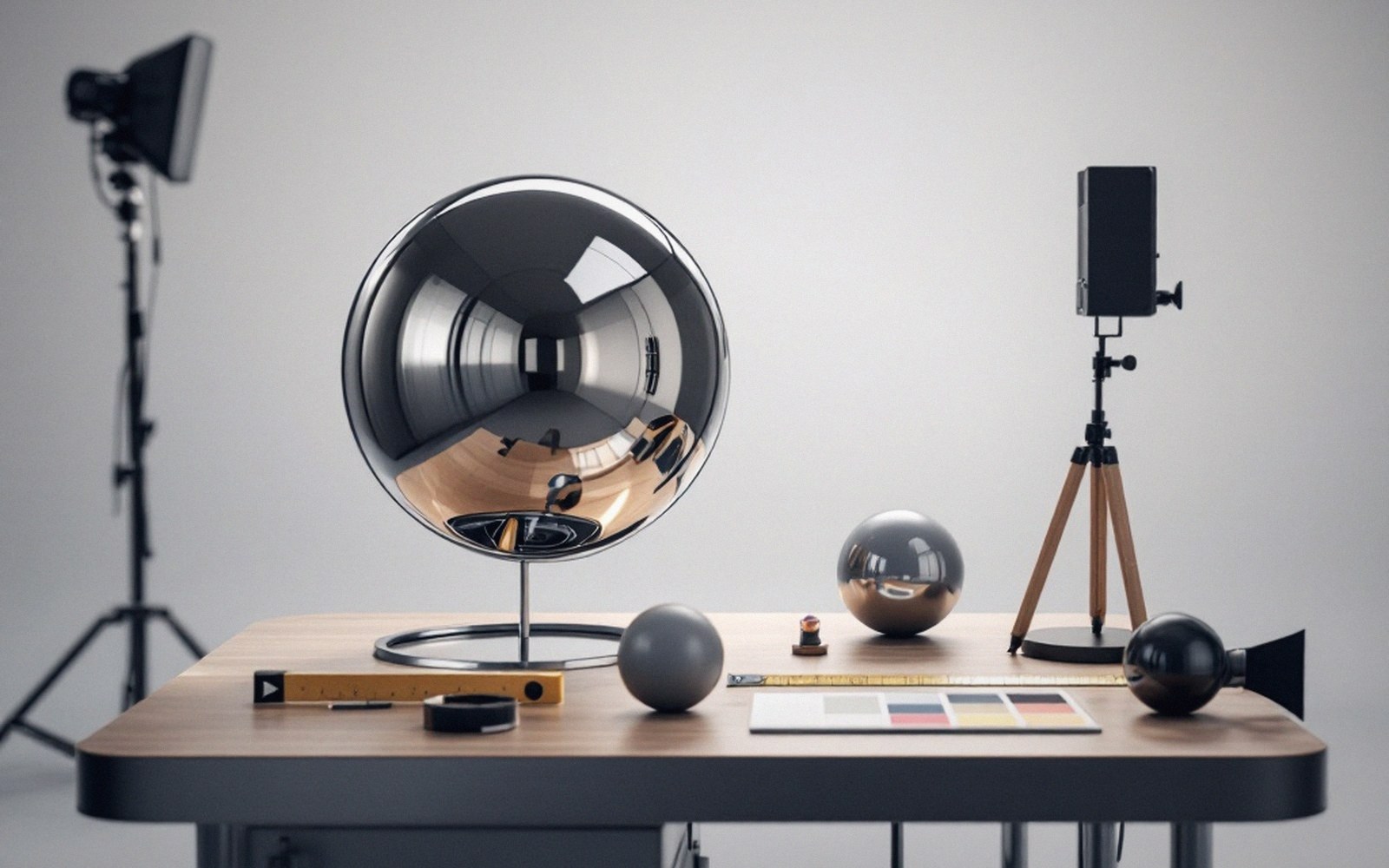

A chrome sphere filling the frame, the stage legible in the reflection — On the tableSame position, same exposure, before the set changes.
